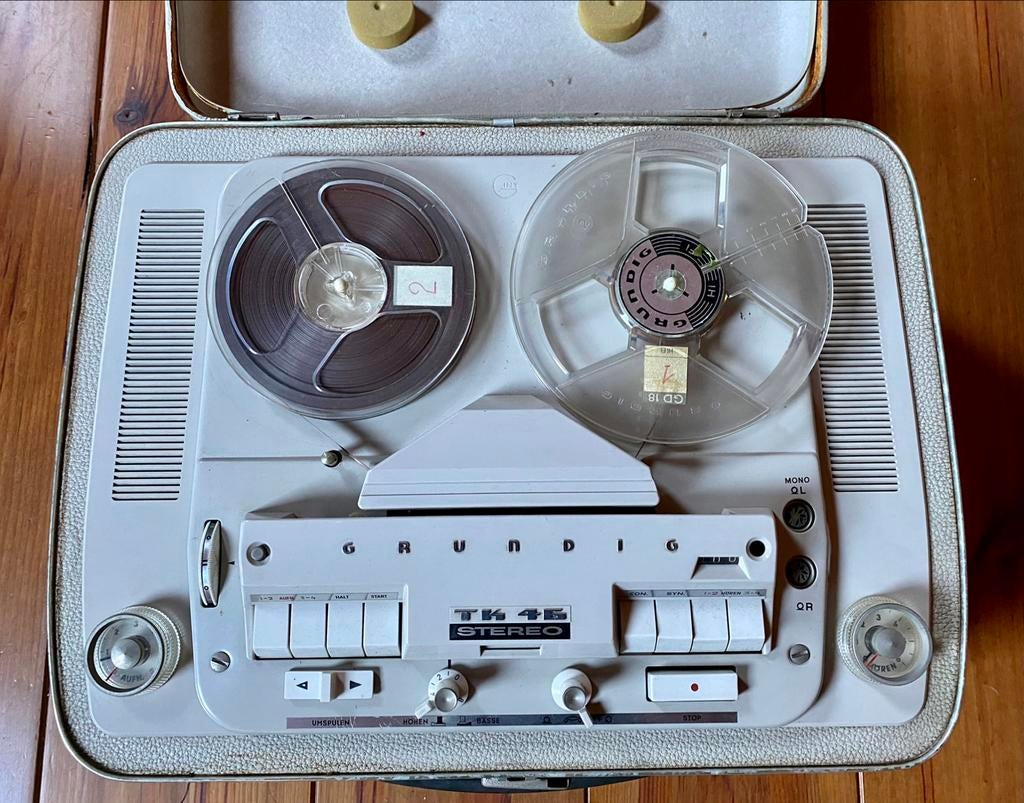

Grundig TK 46 Stereo Tape Deck (1962-66)
Faire une offre
Enlèvement
2031depuis 21 janv.. '23, 13:38
Caractéristiques
TypeMagnétophone
Description
Specifications
Track system: 4-track, 2-channel, stereo/monaural system
Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ips
Frequency response: 40Hz to 18kHz (7 1⁄2 ips)
Input: 80mV (line), 1.5mV (mic)
Output: 0.6V (line)
Output power: 3 watts
Speakers: 2 x superphon 6x4"
Valve complement: 2 x EF86, 2 x ECC81, 2 x ECC83, ELL80, EL95, EM84
Dimensions: 510 x 400 x 210mm
Weight: 14.8kg
Track system: 4-track, 2-channel, stereo/monaural system
Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ips
Frequency response: 40Hz to 18kHz (7 1⁄2 ips)
Input: 80mV (line), 1.5mV (mic)
Output: 0.6V (line)
Output power: 3 watts
Speakers: 2 x superphon 6x4"
Valve complement: 2 x EF86, 2 x ECC81, 2 x ECC83, ELL80, EL95, EM84
Dimensions: 510 x 400 x 210mm
Weight: 14.8kg
- Number of Tubes
- 8
- Valves / Tubes
- EF86 EF86 ECC81 ECC81 EM84 ECC83 ELL80 EL95
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder; Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: TK46 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 510 x 210 x 400 mm / 20.1 x 8.3 x 15.7 inch
- Notes
- Vierspur Stereo; 4,75/9,5/19 cm/s. Spulen-Ø 18 cm. Start/Stop-Fernbedienung nachrüstbar (DM 19,50).
- Net weight (2.2 lb = 1 kg)
- 14.8 kg / 32 lb 9.6 oz (32.599 lb)
- Price in first year of sale
- 898.00 DM
