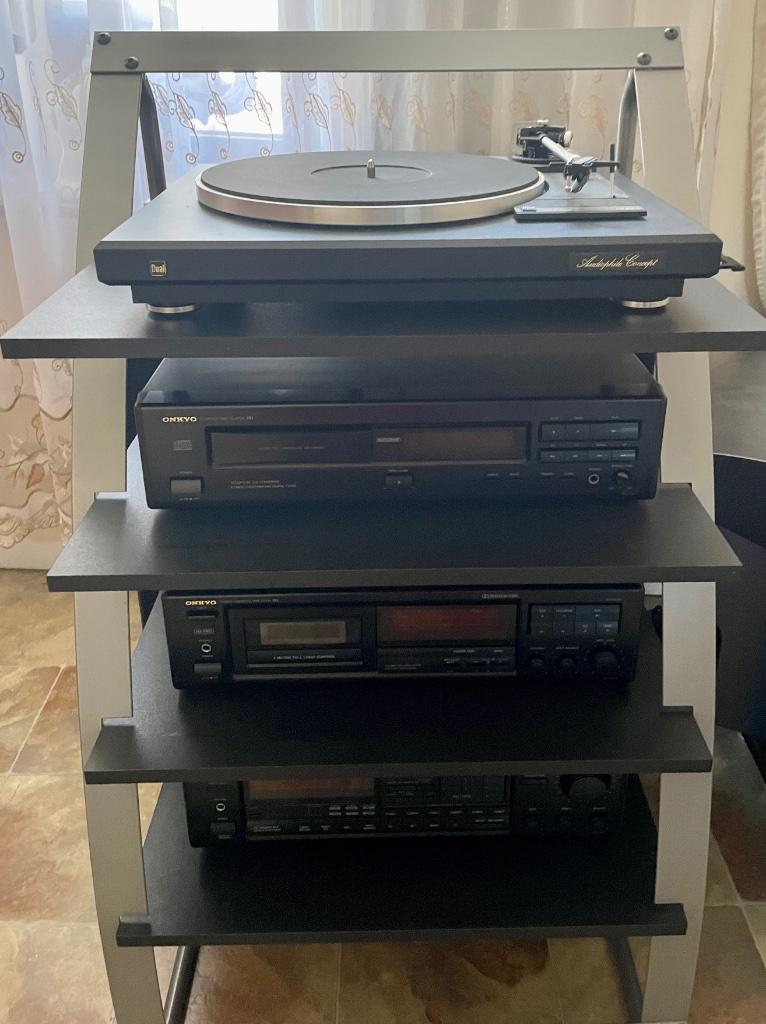

Vintage Onkyo TA 2820/DX 7011/TX 7830/Dual C5/503-02/Rack

Onkyo TX-7830

Specifications
Tuning range: FM, MW
Power output: 60 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 30kHz
Total harmonic distortion: 0.08%
Damping factor: 60
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 80dB (MM), 100dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω (minimum)
Video Connections: composite
Dimensions: 455 x 150 x 331.5mm
Weight: 9.7kg
Accessories: RC-211S remote control

Onkyo DX-7011

Specifications
Disc format: CD
Digital converter: 1-bit
Frequency response: 5Hz to 20kHz
Dynamic range: 96dB
Signal to Noise Ratio: 100dB
Channel separation: 90dB
Total harmonic distortion: 0.004%
Line output: 2V
Dimensions: 455 x 110 x 305mm
Weight: 4.9kg
Accessories: RC-196C remote control


Onkyo TA-2820

Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Frequency Response: 20Hz to 19kHz  (Metal tape)
Signal to Noise Ratio: 78dB  (dolby C)
Wow and Flutter: 0.07%
Input: 80mV (line)
Output: 0.5V (line)
Dimensions: 455 x 120 x 308mm
Weight: 5kg
