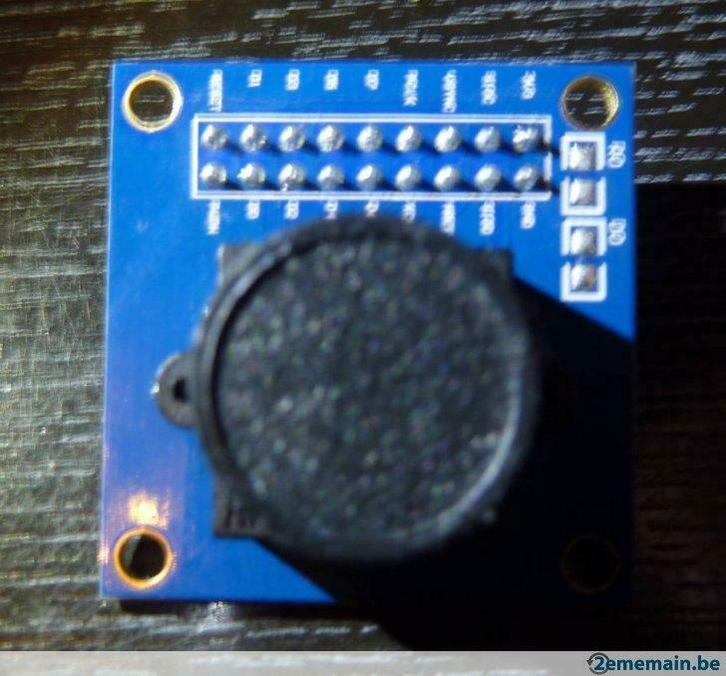

OV7670 300KP VGA caméra Module pour Arduino

OV7670 300KP VGA caméra Module pour Arduino

Item Description

Photosensitive Array: 640 x 480; IO
Voltage: 2.5V to 3.0V;
Operating Power: 60mW/15fpsVGAYUV;
Sleeping Mode: <20 uA;
Operating Temperature: -30 to 70 deg C.;
Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit);
Lens Size: 1/6"; Vision Angle: 25 degree;
Max. Frame Rate: 30fps VGA;
Sensitivity: 1.3V / (Lux-sec);
Signal to Noise Ratio: 46 dB;
DynamicRange: 52 dB;
Browse Mode: By row;
Electronic Exposure: 1 to 510 row;
Pixel Coverage: 3.6um x 3.6um;
Duck Current: 12 mV/s at 6'C

Application:

High sensitivity for low-light operation;
Low operating voltage for embedded application;
Standard SCCB interface compatible with I2C interface;
Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and; YCbCr(4:2:2)output format;
Support VGA, CIF and from CIF to 40 x 30 format;
Vario Pixel method for sub-sampling; Auto Image Control: AEC, AGC, AWB, ABF, ABLC;
Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming;
ISP includes noise reduction and defect correction; Support image scaling; Lens shading correction;
Flicker 50/60Hz auto detection;
Color saturation level auto adjust;
Edge enhancement level auto adjust;
De-noise level auto adjust

Etat: Neuf
